WNK Submersible Water Pressure Level Sensor 4-20ma 0-10V
WNK 8010 throw-in type level transmitter (also called static pressure type level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel (or PTFE) housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly. The product adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement liquid level is not affected by the change of external atmospheric pressure, the measurement is accurate with long term stability and excellent sealing and anti-corrosion performance . It can be put directly into water, oil and other liquids (including corrosive liquids) for a long time. The outer casing and cable of PTFE material can measure a variety of highly corrosive liquids.
Applications:
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features:
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Specification
Output
4~20mA, 0-10mA, 0-5V, 1-5V, customization
Level range
0-0.5~200mH2O
Overload
150% of sensor range
Measuring medium
Liquid
Accuracy
±0.2%FS, ±0.5%FS
Stability
0.25%FS/ year
Housing material
Stainless steel
Cable material
Polyvinyl Fluoride, PTFE
Power Supply
24VDC
Ambient temperature
-20~85℃
Process temperature
-20~85℃
Compensation temperature
-20~85℃
Protection class
IP68

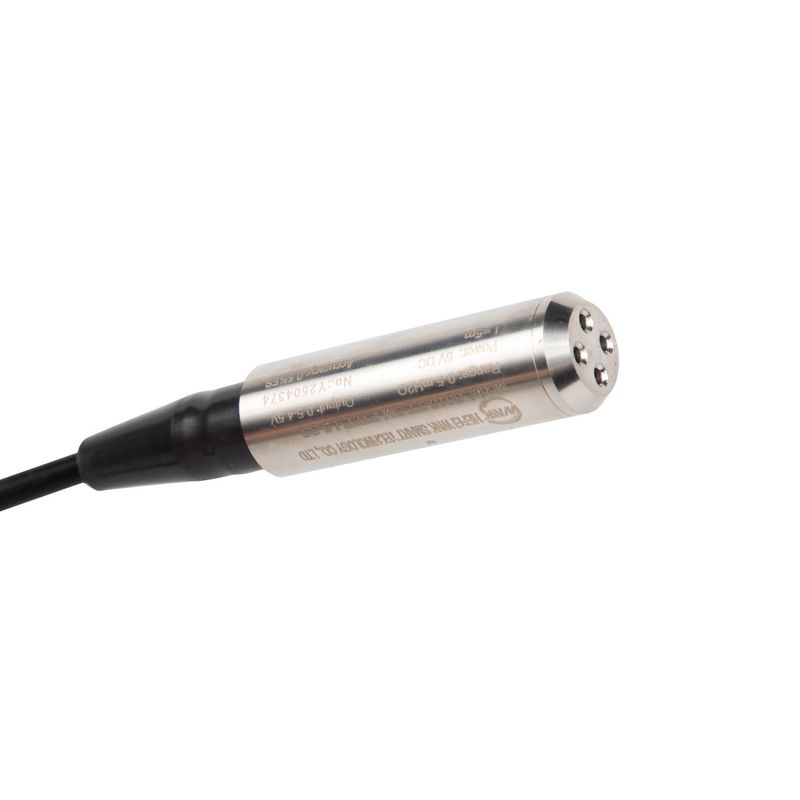

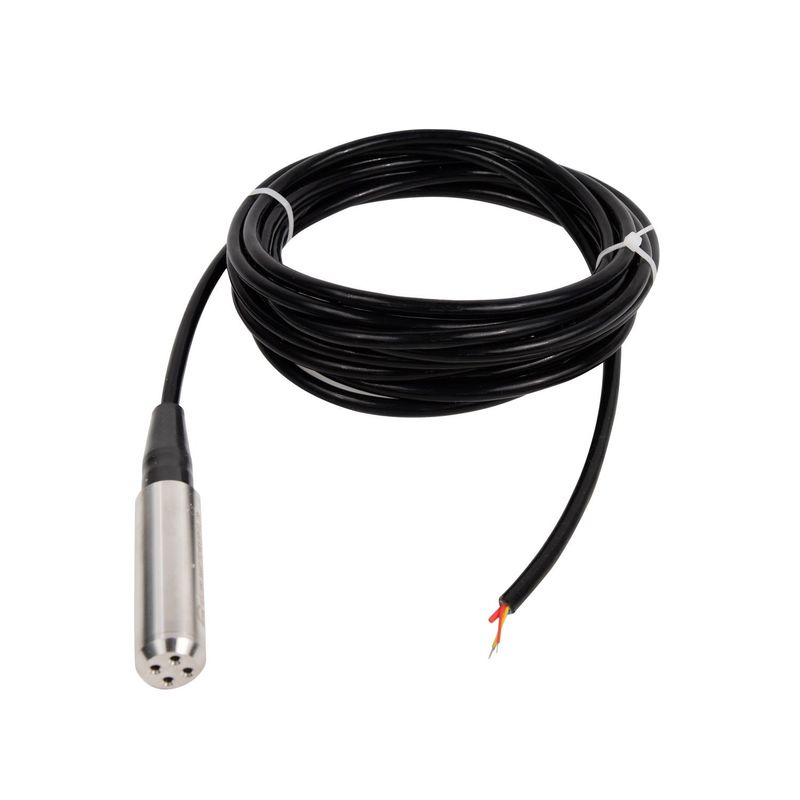

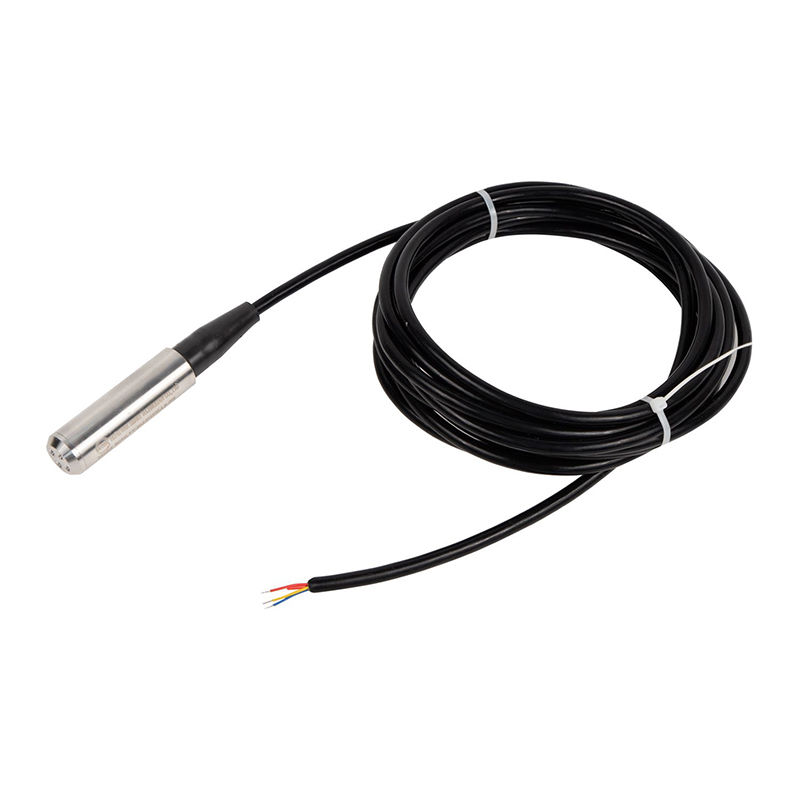

Product Show
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
