4-20ma High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer

4-20mA pressure transmitter sensor

high accuracy pressure transducer

electronic pressure sensor with warranty

원래 장소:

치안

브랜드 이름:

WNK

인증:

CE/ROHS

모델 번호:

WNK80ma

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

측정 된 미디어:

물, 공기, 가스, 증기

주택 자료:

304SS, 316SS

정확성:

0.5%FS

압력 범위:

10kpa, -100kpa...70Mpa

응용 프로그램:

물 공기 냉매 HVAC, 자동차

출력 신호:

4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485

압력 유형:

게이지 압력, 절대 압력, 밀봉 압력

IP 등급:

IP65

강조하다:

4-20mA pressure transmitter sensor

high accuracy pressure transducer

electronic pressure sensor with warranty

지불 및 배송 조건

Wnk 4-20mA 0.5-4.5V I2C IOT Pressure Transmitter Sensor for Water Air Gas

가장 좋은 가격 을 구하라

비디오

4-20ma High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer

가장 좋은 가격 을 구하라

비디오

Low Cost Ceramic Air Compressor Water Truck Fuel Oil Gas Brake Pressure Sensor

가장 좋은 가격 을 구하라

비디오

WNK 수압 센서 에어 컴프레서 압력 송신기/연료 엔진 오일 압력 센서

가장 좋은 가격 을 구하라

저희와 연락

86-551-65369655

지금 연락하세요

제품 설명

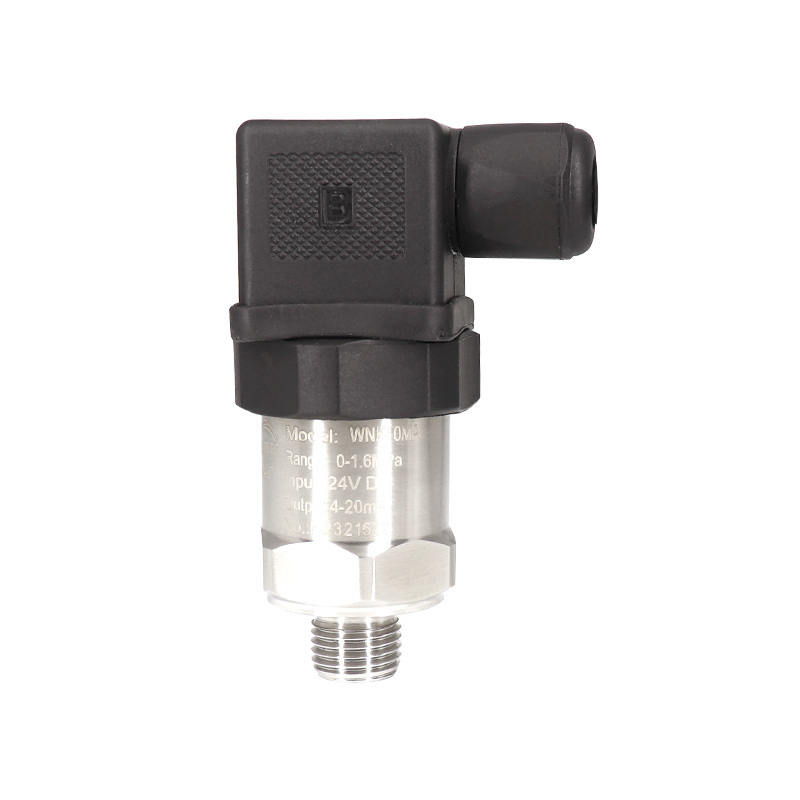

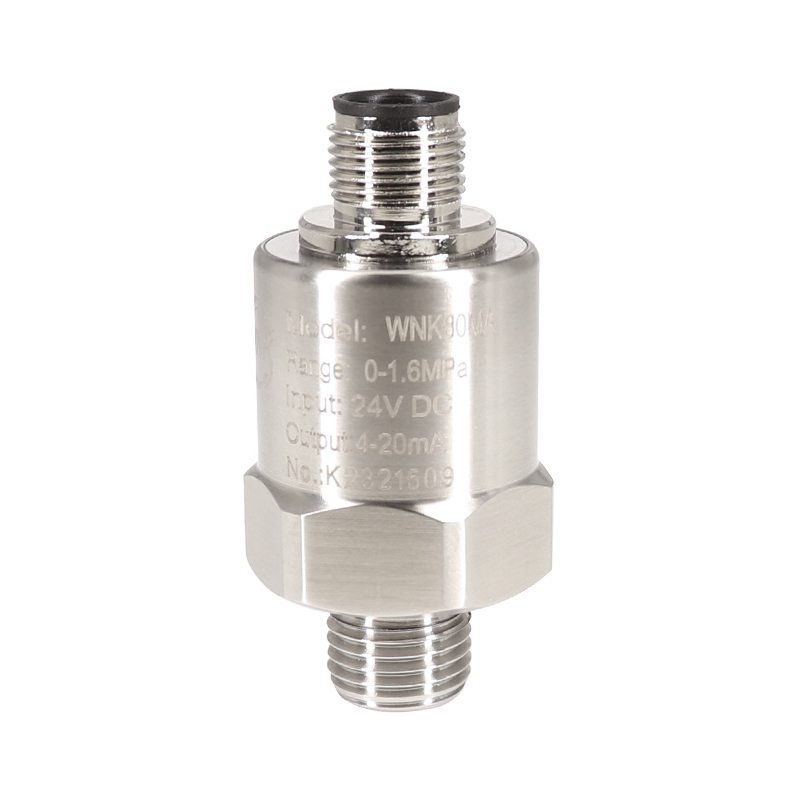

4-20mA High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer

Key Specifications

Attribute	Value
Measured media	Water, Air, Gas, Steam
Housing material	304SS, 316SS
Accuracy	0.5%FS
Pressure range	10kpa, -100kpa...70Mpa
Applications	Water Air Refrigerant HVAC, Automobile
Output signal	4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485
Pressure Type	Gauge Pressure, Absolute Pressure, Sealing Pressure
IP rating	IP65

Technical Details

Applicable media: Liquid, Gas

Pressure Range: 0-60bar

Pressure Type: Gauge Pressure, Absolute pressure, Sealing pressure

Output: 4-20mA/0.5-4.5V/1-5V/0-10V/I2C

Accuracy: 1%F.S.(Typical), 0.5%F.S.(Typical)

Power: 24VDC/12VDC/5VDC/3.3V

Compensation temperature: -20~85ºC

Ambient temperature: -40~125ºC

Working temperature: -40~125ºC

Temperature drift (zero): ±0.15% F.S. (-20~85ºC)

Temperature drift (full range): ±0.15% F.S. (-20~85ºC)

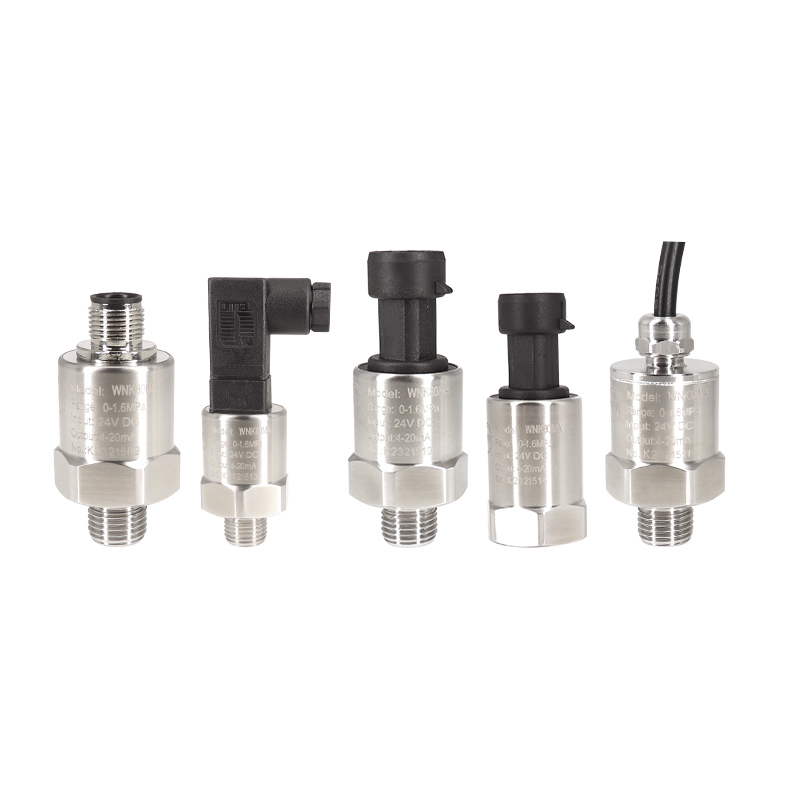

Power connection: Parkard, M12, DIN43650, Cable outlet

Mechanical connection: G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize

Housing material: 304 stainless steel (inner core is 316 stainless steel)

Protection: IP65

Product Overview

WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is 5~10 times of the range, completely solved poor overload in small range of other sensors. In addition to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. As high output and wide range of its core ceramic capacitive sensor, WNK80MA is especially suitable for harsh industrial environment pressure measurement.
