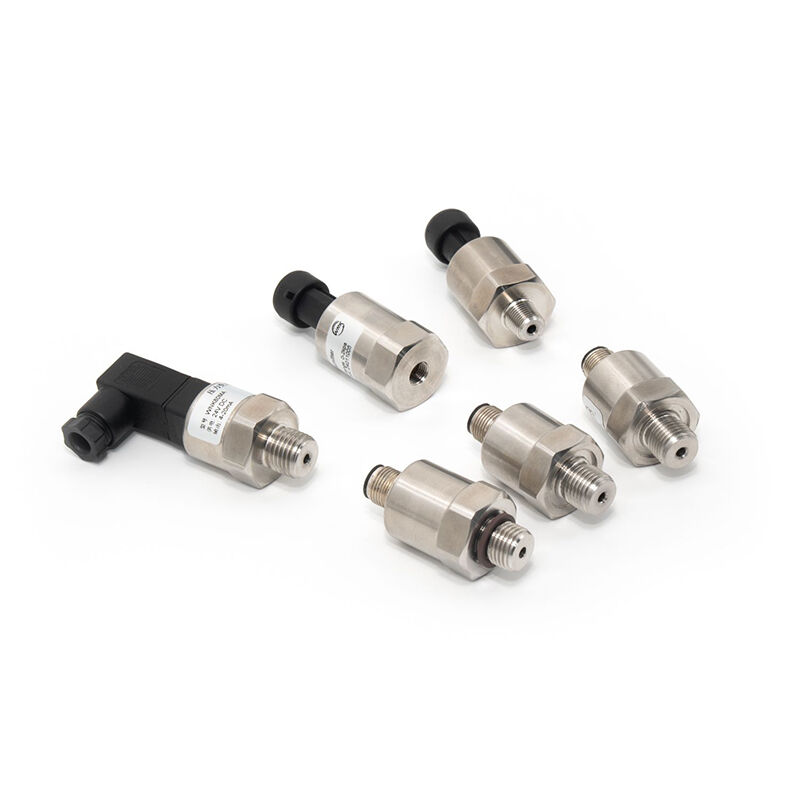

Name: WNK Oil Pressure Sensor 1/8 Npt 0-10 bar 4-20ma 0.5-4.5v Water Truck Fuel Oil Liquid Brake 150psi Pressure Transmitters
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: wnk80ma
Availability: InStock

집 > 상품 > 이엇 압력 센서 >

WNK Oil Pressure Sensor 1/8 Npt 0-10 bar 4-20ma 0.5-4.5v Water Truck Fuel Oil Liquid Brake 150psi Pressure Transmitters

1/8 NPT oil pressure sensor

4-20mA liquid pressure transmitter

water truck brake pressure sensor

원래 장소:

치안

브랜드 이름:

WNK

인증:

CE/ROHS

모델 번호:

wnk80ma

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

측정 된 미디어:

물, 공기, 가스, 증기

하우징 재질:

304SS, 316SS

정확성:

0.5%fs

압력 범위:

10kpa, -100kpa ... 70mpa

응용:

물 공기 냉매 HVAC, 자동차

출력 신호:

4-20MA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485

압력 유형:

게이지 압력, 절대 압력, 밀봉 압력

IP 등급:

IP65

강조하다:

1/8 NPT oil pressure sensor

4-20mA liquid pressure transmitter

water truck brake pressure sensor

지불 및 배송 조건

WNK 0-5V 4~20mA 0.5% FS 스테인리스 스틸 진공 압력 센서 트랜스미터 (물, 공기, 가스용)

가장 좋은 가격 을 구하라

비디오

WNK 0-5V 4~20mA 0.5% 가스 물 압력 센서 OEM 폭발 방지 압력 송신기 변환기

가장 좋은 가격 을 구하라

비디오

WNK hvac 에어컨 R134a R404a R407c R410a R502 R507을위한 0.5-4.5V 압력 센서

가장 좋은 가격 을 구하라

비디오

유니버설 산업용 4-20mA 0-10V 압력 센서 송신기 물 공기 가스를 위한 트랜스듀서

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

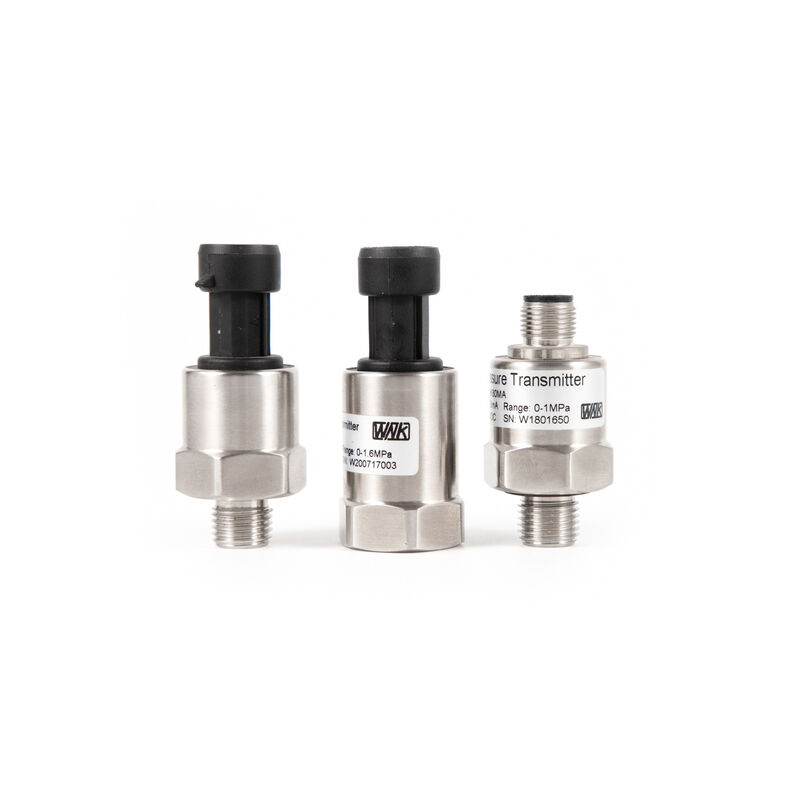

WNK 100Psi 150Psi Water Pressure Sensor 4-20ma

WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core.It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and etc.With certification of UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.

Product Description

Applicable media	Liquid, gas and steam
Pressure range	0-60Bar/ -1-700Bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS 1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Water Pressure Sensor for Air Gas

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.
