Name: WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125SP
Availability: InStock

집 > 상품 > 이엇 압력 센서 >

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

I2C water pressure sensor for coffee machine

M6 pressure transducer with warranty

0.5-4.5V coffee machine pressure sensor

원래 장소:

치안

브랜드 이름:

WNK

모델 번호:

WNK125SP

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

기계적인 연결:

M6*1, 사용자 정의

적용 가능한 매체:

액체, 가스

압력 유형:

게이지 압력, 절대 압력

Toal 오류 밴드:

±1.0%

압력 범위:

0-5bar, 0 ~ 10bar, 0 ~ 20bar, 0 ~ 40bar

전원공급장치:

5VDC

산출:

0.5 ~ 4.5V, I2C

정확성:

±1%FS

강조하다:

I2C water pressure sensor for coffee machine

M6 pressure transducer with warranty

0.5-4.5V coffee machine pressure sensor

지불 및 배송 조건

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

가장 좋은 가격 을 구하라

비디오

ATEX CE 4-20mA 0.5-4.5V I2C -100kPa-100MPa 공기 수압 변환기 진공 절대 압력 센서 송신기

가장 좋은 가격 을 구하라

비디오

WNK125P 0.5~4.5V 150PSI 압력 센서 5Bar MAP 센서 자동차 압력 센서

가장 좋은 가격 을 구하라

비디오

WNK 저비용 콤팩트 압력 센서 공기 물 기름 0.5-4.5V

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

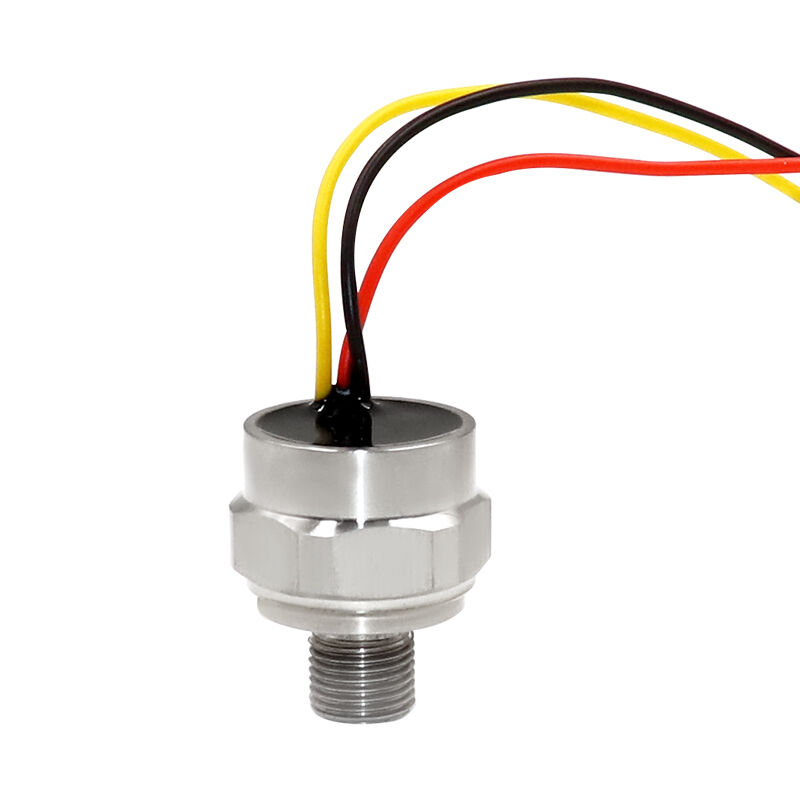

WNK I2C Pressure Sensor for Coffee Machine

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine 0

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

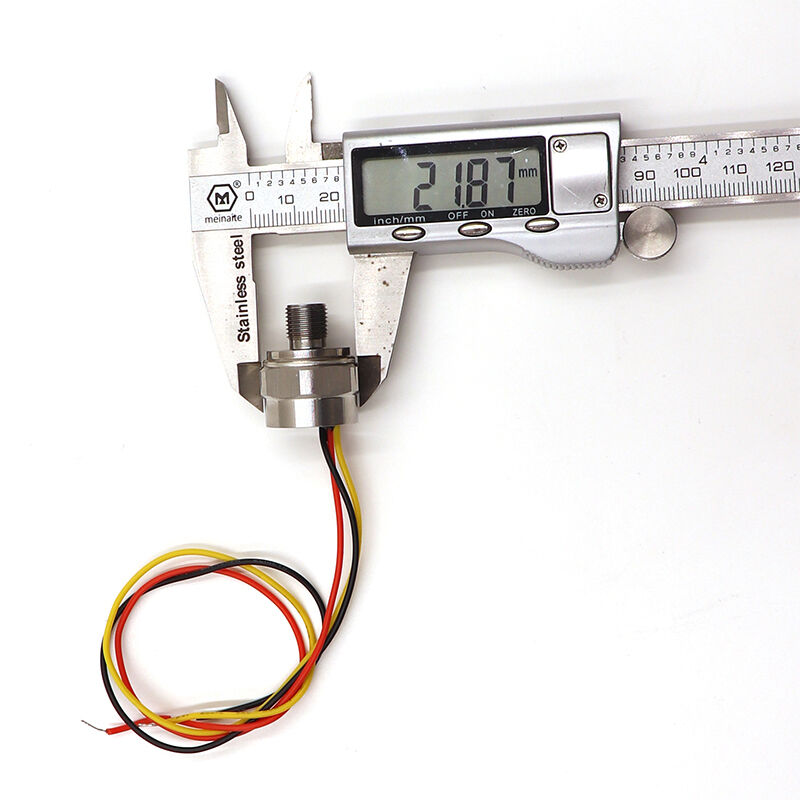

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
