Name: Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125SP
Availability: InStock

집 > 상품 > 이엇 압력 센서 >

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

원래 장소:

치안

브랜드 이름:

WNK

모델 번호:

WNK125SP

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

기계적인 연결:

M6*1, 사용자 정의

적용 가능한 매체:

액체, 가스

압력 유형:

게이지 압력, 절대 압력

Toal 오류 밴드:

±1.0%

압력 범위:

0-5bar, 0 ~ 10bar, 0 ~ 20bar, 0 ~ 40bar

전원공급장치:

5VDC

산출:

0.5 ~ 4.5V, I2C

정확성:

±1%FS

강조하다:

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

지불 및 배송 조건

ATEX CE 4-20mA 0.5-4.5V I2C -100kPa-100MPa 공기 수압 변환기 진공 절대 압력 센서 송신기

가장 좋은 가격 을 구하라

비디오

WNK125P 0.5~4.5V 150PSI 압력 센서 5Bar MAP 센서 자동차 압력 센서

가장 좋은 가격 을 구하라

비디오

WNK 저비용 콤팩트 압력 센서 공기 물 기름 0.5-4.5V

가장 좋은 가격 을 구하라

비디오

확산 실리콘 압력 센서 0-20 Bar 4-20mA ±0.5%FS 정확도 316L SS IP65

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

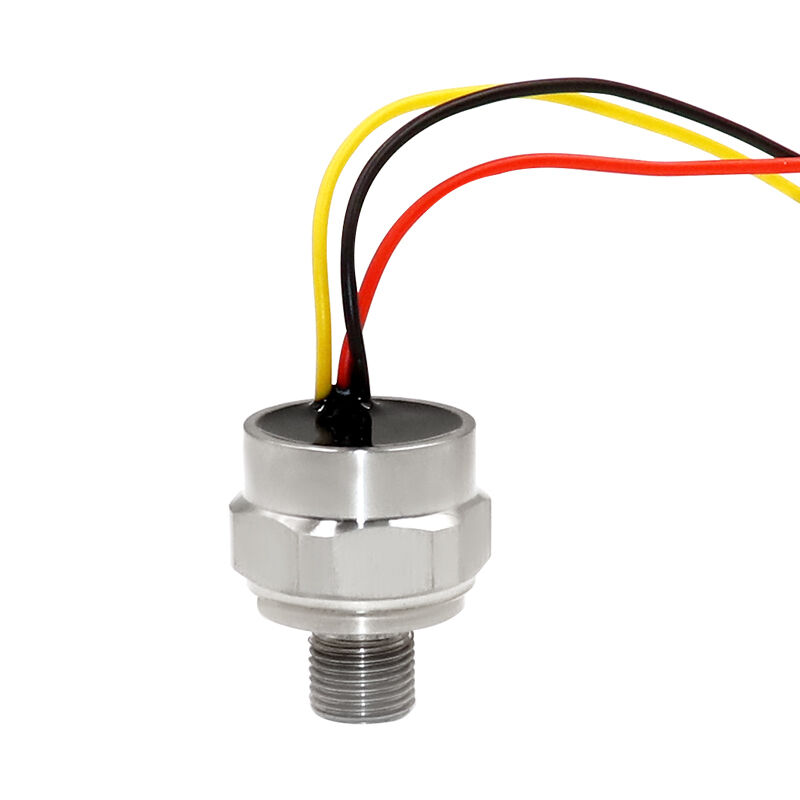

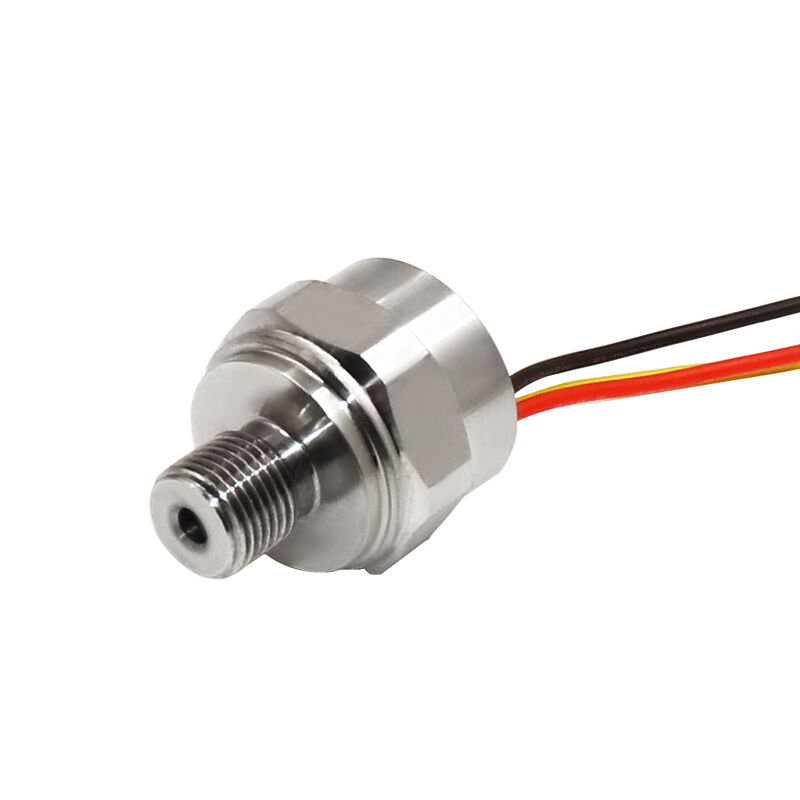

WNK Low Cost Pressure Sensor for Beer Coffee Machine

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine 0

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

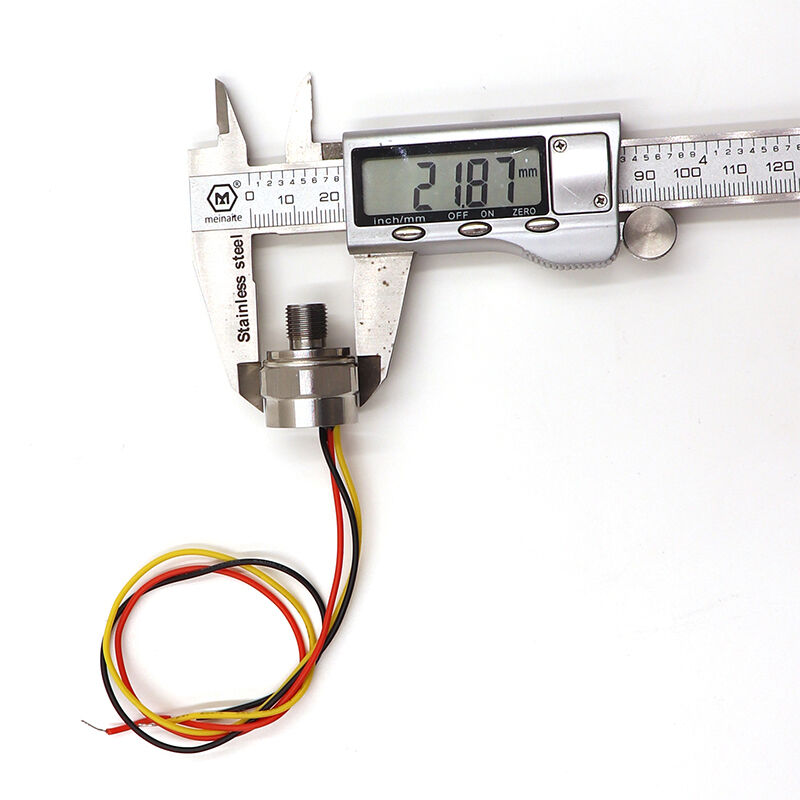

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
